3225 07D Plastic Coated Surface Mount SMD Metal Oxide Varistor 4032 10D 200V~820V
Description Of The Plastic Coated Surface Mount SMD Metal Oxide Varistor
AMPFORT AFT-P series varistors (Plastic SMD Type) is an innovative products instead
of the leads acording to customers’ demands such as big size SMD components. It is widely
used in LED driving power supply, communication equipment, carrier module,security
equipment etc. In which reflow welding process is adopted. 3225 SMD Varistor replace
07D plug in varistor and 4032 SMD Varistor replace 10D dip varistor.
Features Of The Plastic Coated Surface Mount SMD Metal Oxide Varistor
* Improved component design in a compact case.
* High surge current capability of up to 1.75 kA.
* Superior performance at high temperature.
* Better stability and reliability under hot and humid conditions
* SMD mountable disk varistors, suitable for lead-free reflow / wave soldering.
* Operating temperature -55 to +125 ℃
* Storage temperature -25 to +45 ℃
* Electric strength ≥2.5 kVRMS
* Insulation resistance ≥100 MΩ
Application Of The Plastic Coated Surface Mount SMD Metal Oxide Varistor
* Power supplies for telecommunication systems.
* Protection for LED circuits.
* Protection for consumer, industrial equipment.
* Protection for automotive electronics.

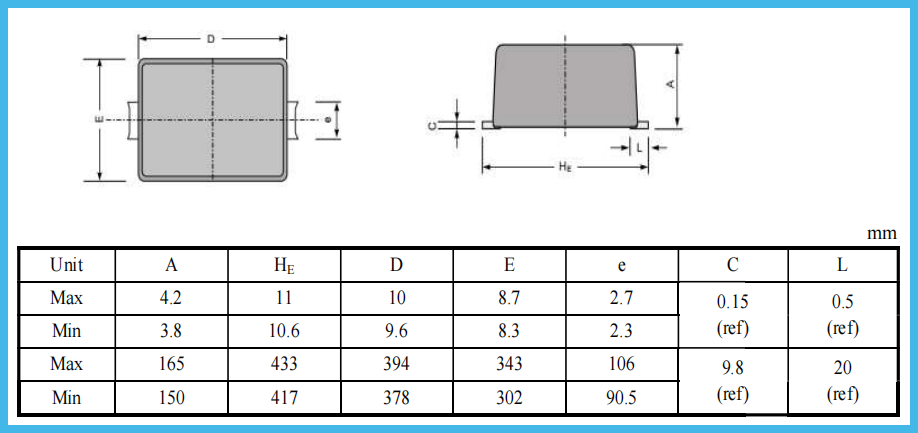

Dimension Of The Plastic Coated Surface Mount SMD Metal Oxide Varistor
Specifications Of The Plastic Coated Surface Mount SMD Metal Oxide Varistor
| No. | P/N | Maxi Allowable
Voltage(V) | Energy 10/1000 μS
(J) | Varistor Volage (V)
0.1mA | Max Clamping
Voltage(V) | Capacitance (PF)
1KHz |
| ACrms | DC |
| 1 | AFT-P 3225-221K | 140 | 180 | 7.5 | 220(198-242) | 360 | 110 |
| 2 | AFT-P 3225-241K | 150 | 200 | 9.0 | 240(216-264) | 395 | 110 |
| 3 | AFT-P 3225-271K | 175 | 225 | 9.5 | 270(243-297) | 455 | 95 |
| 4 | AFT-P 3225-301K | 190 | 250 | 10.5 | 300(270-330) | 505 | 85 |
| 5 | AFT-P 3225-331K | 210 | 275 | 10.5 | 330(297-363) | 550 | 75 |
| 6 | AFT-P 3225-361K | 230 | 300 | 11.0 | 360(324-396) | 595 | 70 |
| 7 | AFT-P 3225-391K | 250 | 320 | 12.0 | 390(351-429) | 650 | 65 |
| 8 | AFT-P 3225-431K | 275 | 350 | 13.5 | 430(387-473) | 710 | 60 |
| 9 | AFT-P 3225-471K | 300 | 385 | 15.0 | 470(423-517) | 775 | 55 |
| 10 | AFT-P 3225-511K | 320 | 415 | 15.0 | 510(459-561) | 845 | 50 |
| 11 | AFT-P 3225-561K | 350 | 460 | 17.0 | 560(504-616) | 920 | 45 |
| 12 | AFT-P 3225-621K | 385 | 505 | 19..0 | 620(558-682) | 1025 | 40 |
| | | | | | | | |
| 13 | AFT-P 4032-221K | 140 | 180 | 29.0 | 220(198-242) | 360 | 230 |
| 14 | AFT-P 4032-241K | 150 | 200 | 30.0 | 240(216-264) | 395 | 210 |
| 15 | AFT-P 4032-271K | 175 | 225 | 33.0 | 270(243-297) | 455 | 185 |
| 16 | AFT-P 4032-301K | 190 | 250 | 36.0 | 300(270-330) | 505 | 165 |
| 17 | AFT-P4032-331K | 210 | 275 | 38.0 | 330(297-363) | 550 | 150 |
| 18 | AFT-P 4032-361K | 230 | 300 | 43.0 | 360(324-396) | 595 | 140 |
| 19 | AFT-P 4032-391K | 250 | 320 | 47.0 | 390(351-429) | 650 | 130 |
| 20 | AFT-P 4032-431K | 275 | 350 | 51.0 | 430(387-473) | 710 | 115 |
| 21 | AFT-P 4032-471K | 300 | 385 | 57.0 | 470(423-517) | 775 | 105 |
| 22 | AFT-P 4032-511K | 320 | 415 | 58.0 | 510(459-561) | 845 | 100 |
| 23 | AFT-P4032-561K | 350 | 460 | 61.0 | 560(504-616) | 920 | 90 |
| 24 | AFT-P 4032-621K | 385 | 505 | 68.0 | 620(558-682) | 1025 | 80 |
| 25 | AFT-P 4032-681K | 420 | 560 | 75.0 | 680(612-748) | 1120 | 75 |
| 26 | AFT-P 4032-751K | 460 | 615 | 80.0 | 750(675-825) | 1240 | 65 |
Package Method Of The Plastic Coated Surface Mount SMD Metal Oxide Varistor
Product Tags:
|
|

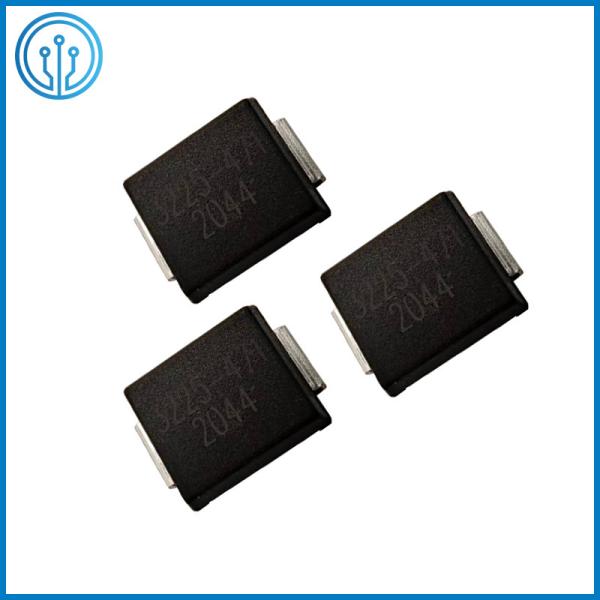

Plastic Coated Metal Oxide Varistor Images
|
